Heating Cables

Heating cables

  • Corewarm loose wire indoor heating

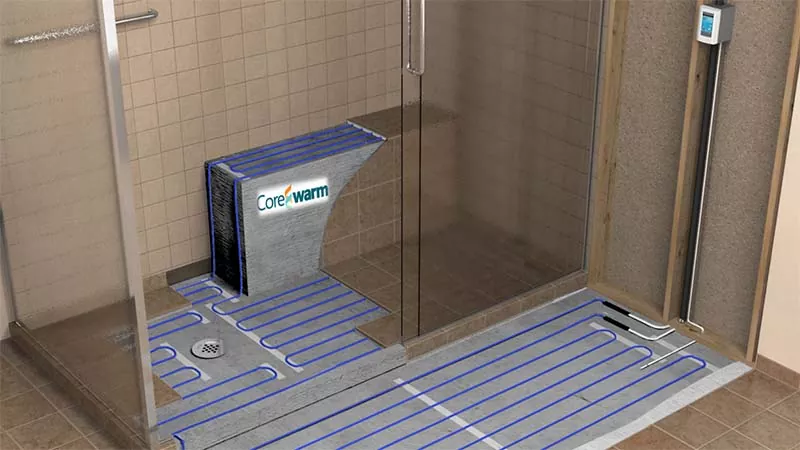

The loose wire heating is a concept suitable for installation within small or irregular shaped areas. The loose heating wire is installed directly beneath the final floor (it can be tile/ marble/ parquet). The variable spacing of the cable available during the installation allows the installer to customize the requirements and lay easily around the fixture and follow the outline pattern according to the setup within the room.
The heating cable is divided into single conductor heating cable and twin conductor heating cable.

Single core heating cable (SCW)

Technical Details

– Linear Wattage Density: 10W/m – 15W/m
– Rated Voltage: 230V, 50Hz
– Maximum Operation Temperature: 90°C
– Conductor: Single core, Class-2 resistance alloy
– Core Insulation: Advance Fluoropolymer/XLPE
– Earth Shield: Copper shielding
– Outer Sheath: HRPVC/XLPO/TPE
– Cold lead connection: Type- Y attachment (Upto 4m long)-2 core cable on each side
– Cable diameter: Upto 3.25mm depending upon the insulating materials and customer requirements

Product Range Model: SCW

Average output rating: 200W/m²
Product codeArea (m²)Wattage (W)
SCW4001.5-2.4400
SCW6002.5-3.4600
SCW8003.5-4.4800
SCW10004.5-5.41000
SCW12005.5-6.41200
SCW14006.5-7.41400
SCW16007.5-8.41600
SCW18008.5-9.41800
SCW20009.5-10.42000
SCW220010.4-12.02200

Dual core heating cable (DCW)

Technical Details

– Linear Wattage Density: 10W/m -18W/m
– Rated Voltage: 230V, 50Hz
– Maximum operation Temprature: 90°C
– Conductor: Twin core, Class-2 resistance alloy
– Core Insulation: Advance Fluoro polymer/XLPE
– Earth Shield: Copper shielding
– Outer Sheath: HRPVC/XLPO/TPE
– Cold lead connection: Type-Y attachment (Upto 4 m)-3 Core
– Cable diameter: 3.30mm to 5.25mm depending upon the insulting materials and customer requirements

Product Range Model: DCW

Wattage output rating:160W/m²
                             Product codeArea (m²)Wattage (W)
DCW3201.5-2.4320
DCW4802.5-3.4480
DCW6403.5-4.4640
DCW8004.5-5.4800
DCW9605.5 -6.4960
DCW11206.5-7.41120
DCW12807.5-8.41280
DCW14408.5-9.41440
DCW16009.5-10.41600
DCW176010.4-12.01760
