Heated Downspout – Downspouts Heating Cables

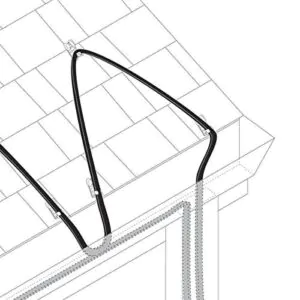

Downspouts Heating CablesThe downspout is run between two building, so it does not see much sun, it also handles about 50% of the water from the roof. Usually after a longer cold spell and lots of snow it will freeze up solid. Ice may form in downspouts and prevent melting water from escaping from the roof. Corewarm heating cable is designed to be installed in the downspout to prevent ice build-up inside the downspouts.



Technical Details

  • Linear Wattage Density: 30W/m (standard), 40W/m (on request)
  • Rated Voltage: 230V, 50Hz
  • Nominal Limit Temperature: 80°C
  • Installation Temperature: -20°C
  • Conductor: Twin core/Single core, Class-2 resistance alloy
  • Core Insulation: Advance fluoropolymer
  • Earth Shield: Copper shielding
  • Outer Sheath: Cross Linked Elastomer
  • Cold lead connection: Type- Y attachment (Upto 5 mtr) both side or one side depending upon single or twin configuration.
  • Cable diameter: 6.5mm-7.5mm
  • Protection category: IPx7; UV resistant

Rating
Approx. 30W/m to 40W/m at 230V
Single/Twin Conductor cable

While ordering – Note:
Linear wattage W/m
Heating conductor twin or single

Product Range

Product codeLength(m)Wattage(W)
SMCC-30W/85029850
SMCC-30W/1100381100
SMCC-30W/1400471400
SMCC-30W/1700571700
SMCC-30W/2000672000
SMCC-30W/2250752250
SMCC-30W/2500842500
SMCC-30W/2800942800
SMCC-30W/33501123350
SMCC-30W/40001344000
SMCC-30W/45001504500
SMCC-30W/50001685000
